The Yamaha Electone HX series comes in 5 flavors.
The parts are exchangeable, so you might discover different configurations.
Pictures are courtesy of http://www.freewebs.com/hxelectone/index.htm.
A very informative site about the HX series.
|
|
Yamaha Electone HX
The Yamaha Electone HX series comes in 5 flavors.
Pictures are courtesy of http://www.freewebs.com/hxelectone/index.htm.
|
The 5 flavors are:

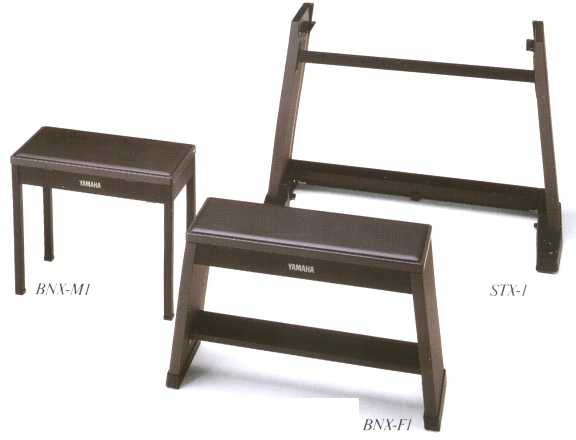

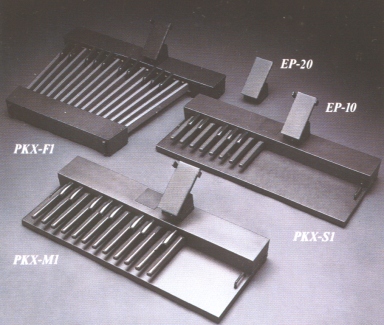

| system | tone generator | keyboard | pedalboard | stand | bench |

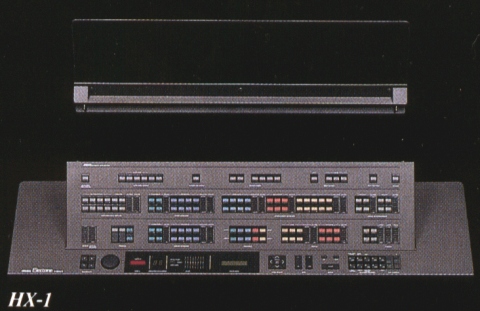

| System 1 | HX-1 | MKX-5 | PKX-F1 | STX-1 | BNX-F1 |
| System 2 | HX-1 | MKX-5 | PKX-M1 | STX-1 | BNX-M1 |
| System 3 | HX-3 | MKX-5 | PKX-M1 | STX-1 | BNX-M1 |
| System 4 | HX-5 | MKX-5 | PKX-M1 | STX-1 | BNX-M1 |
| System 5 | HX-5 | MKX-4 | PKX-S1 | STX-1 | BNX-M1 |

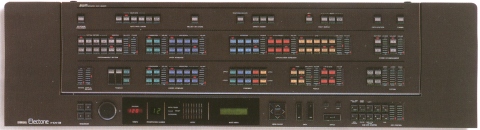

HX-3

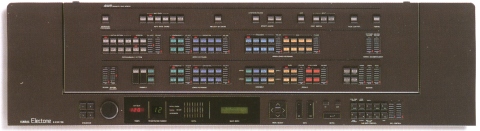

HX-5

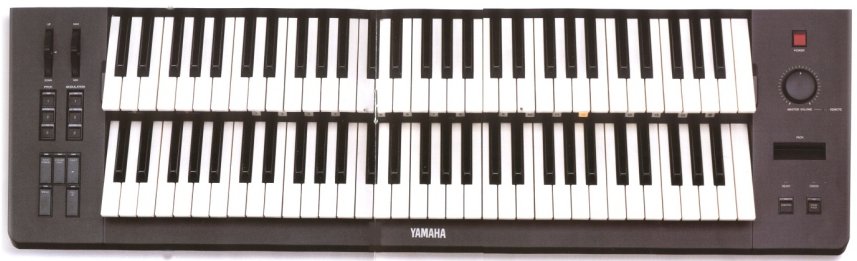

MKX-5

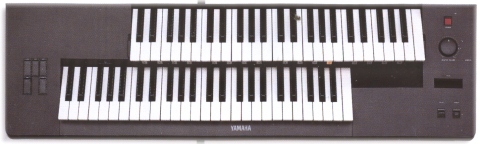

MKX-4
Add-on units
| AVS-10 | AWM tone generator expander for H series organs, featuring 12 AWM sounds including; pipe organ, strings, brass, vocal, piano, harpsichord, acoustic guitar, vibraphone, string bass, wd bass and timpani. |
| CVS-10 | Combination voice expander for H series organs, Hammond organ style drawbars. |
| MDR-x | Music Disk Recorders, various different models released, principally MDR 2, 3 & 4 for use with HX. |
| FVX-1 | FM tone generator |

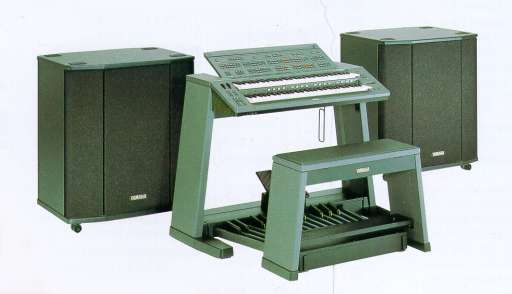

A full blown HX-1 System 1:

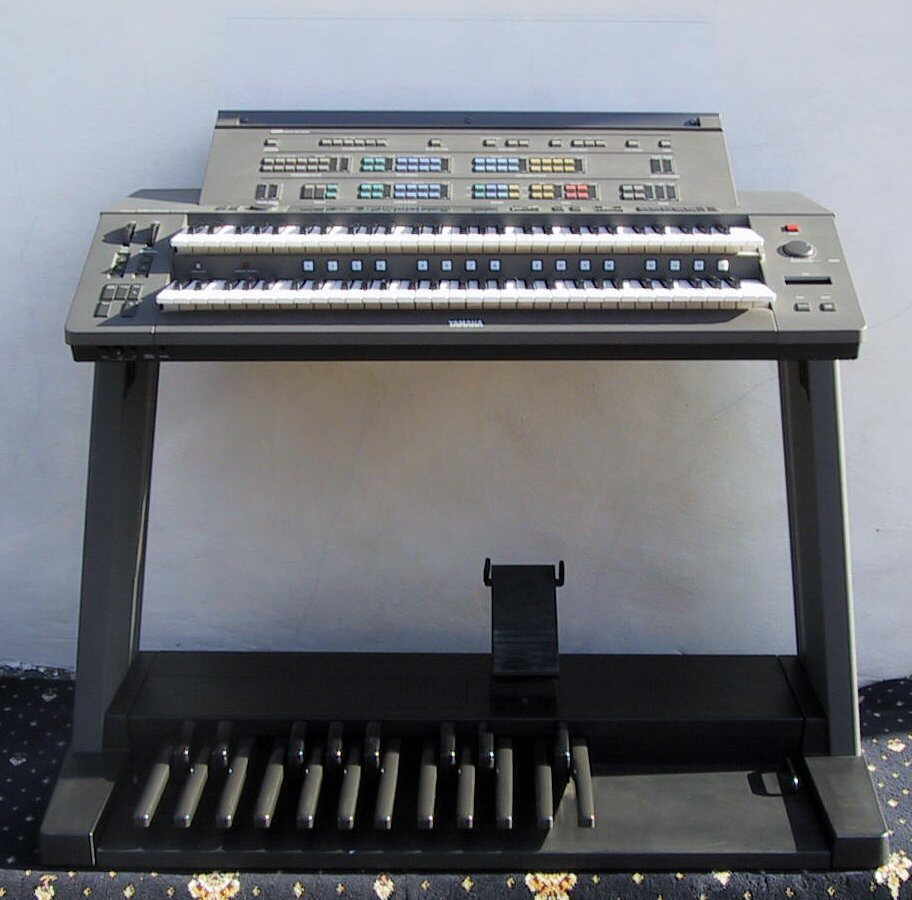

An HX-5 System 4

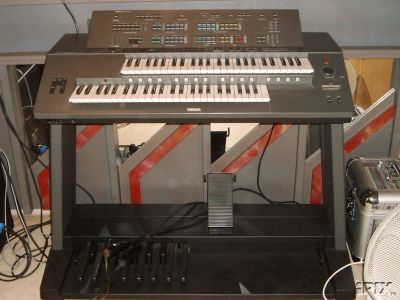

An HX-5 System 5

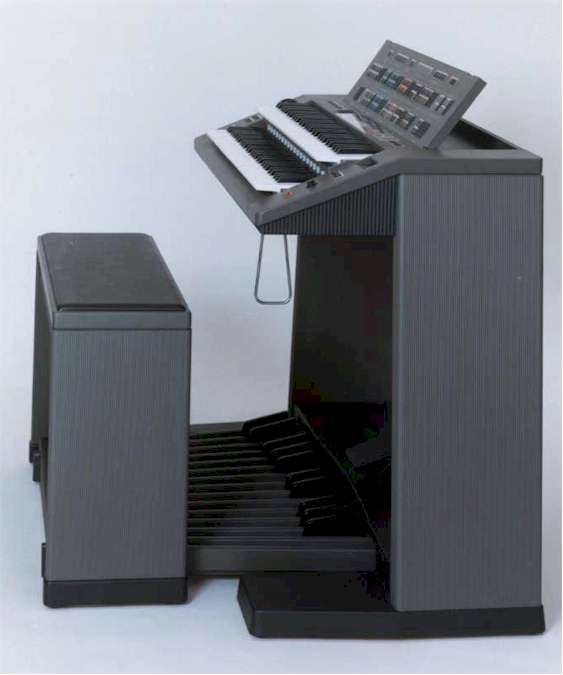

An HX-1 System 1 from the side

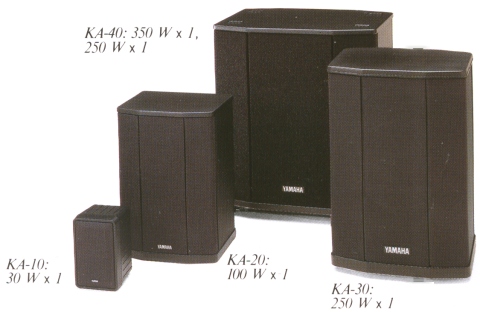

An HX-1 but with PKX-S1 13-pedals pedalboard plus two KA-10 / 30W speakers

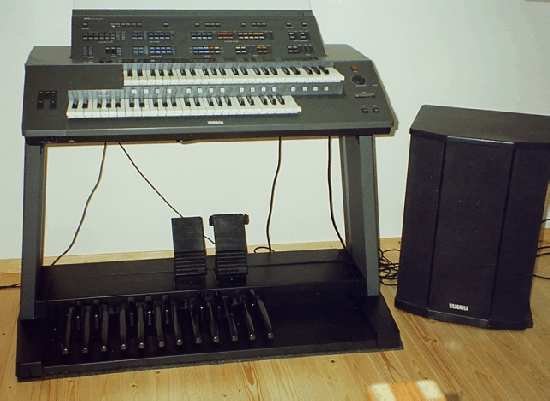

An HX-3 but with MKX-4 49-keys keyboards plus two (one visible) KA-20 / 100W speakers
